Product Description
High Power COFDM Video Transmitter Introduction:

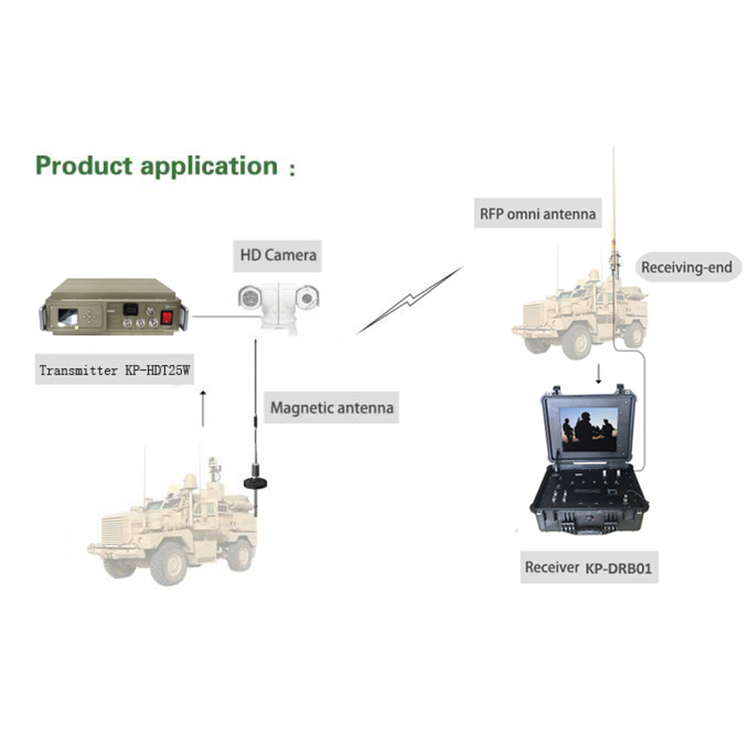

KP-HDT20WG it’s a new powerful HD COFDM video audio transmitter, up to 20W power which support transmitting over a long distance.Using the core technology 4th generation mobile communication COFDM modulation and low delay full-HD 1080P technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles(NLOS). Suitable for vehicles - cars, boat - boats, cars - a building, ship – a base station, aircraft –a buiding/vehicle and etc. high-definition moving video signal transmission, the carrier velocity greater than 450 km/h. Widely used in public security, fire, field armies, other departments and broadcasting, urban management, civil defense, transportation, customs, oil, mining, water, electricity, geology, finance and other relevant state departments.
Specifications:
|
Frequency
|
300-900MHz option,1.2G/2.4G/5.8GHz
|
|
RF power
|
5-20 watt (adjustable)
|
|
Power supply
|
DC11-14.5V/1.9A
|
|
Modulation
|
COFDM 2K QPSK
|
|
RF Bandwidth
|
4/8MHz(adjustable)
|
|
Delay time
|
Only 200ms
|
|
FEC
|
1/2 2/3 3/4 7/8
|
|
Guard Interval
|
1/32 1/16 1/8 1/4
|
|
Data Encryption
|
AES 128/256 Bits
|
|
Max speed
|
450km/h
|
|
Video Input
|
BNC: D1 standard definition
|
|
|
HDMI: HD1080I/1080P, 720P, 576, 480
|
|
|
SDI:HD1080I/1080P, 720P, 576, 480
|
|
Video compression format
|
H.264/H.265
|
|
Video Resolution
|
180p/1080i@60fps, 1920*1080 definition
|
|
RF Interface
|
N type
|
|
Work environment
|
-40℃~70℃
|
|
Video Format
|
PAL/NTSC(self-adaption)
|
|
Transmission Distance
|
15km NLOS distance (ground to ground)
100-150km LOS distance (air to ground)
|
|
Size
|
220*275*78mm
|
|
Weight
|
5.1kg
|
