64QAM Constellation 1080P HD 300-900Mhz Long Range Nlos Wifi Cofdm Wireless Video Transmitter And Receiver

Place of Origin : Guangdong, China

Brand Name : Kimpok

Model Number : KP-HDT5000

Price : Negotiation

Certification : CE

MOQ : 1 Piece

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Product name : Cofdm Wireless Video Transmitter And Receiver

Frequency : 300-900Mhz or other frequency customized

Modulation : COFDM

Consumption : <40W

Encryption : AES 128 bits

Constellation : QPSK(4QAM),16QAM,64QAM

FEC : 1/2 2/3 3/4 5/6 7/8

Guard Interval : 1/32 1/16 1/8 1/4

Carrier : 2K,8K

Bandwidth : 2/3/4/6/7/8MHz (option)

Contact Now

Product Description

Such new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.



Transmitter parameter:



 Frequency

300-900Mhz or other frequency customized

 Modulation

 COFDM

 Consumption

 <40W

 Encryption

 AES 128 bits

Constellation

 QPSK(4QAM),16QAM,64QAM

 FEC

 1/2 2/3 3/4 5/6 7/8

Guard Interval

 1/32 1/16 1/8 1/4

 Carrier

2K,8K

 Bandwidth

 2/3/4/6/7/8MHz (option)

 Transfer rate

 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M

 RF power

 2~5W adjustable

 Video input

 HDMI,CVBS,AHD,SDI (option)

 Video coding

 MPEG-4/H.264

 Video resolution

1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL

 Working voltage

  DC12V

 Working Temperature

 -20℃ -- +55℃

 Dimension

 220*150*60mm

 Weight

 1362g

 Box colour

 Black

Antenna port

N type

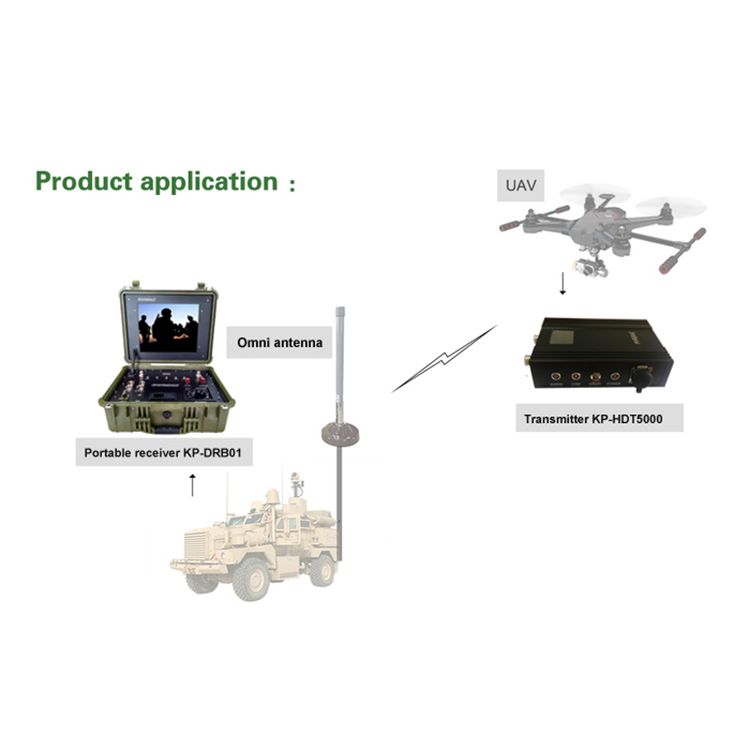

 This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.



Receiver parameter:



Frequency

300-900Mhz or other frequency customized

 Bandwidth

 2/3/4/5/6/7/8MHz (option)

 RF input level

 -94dBm~0dBm(8M)/-98dBm~0dBm(2M)

 RF input impedance

 50Ω

RF input type

 N type

 Modulation

 COFDM

Constellation

 QPSK,16QAM,64QAM(adjustable)

 FEC

1/2,2/3,3/4,5/6,7/8(adjustable)

 Carrier

 2k

 Guard Interval

 1/32,1/16,1/8,1/4(adjustable)

 Video coding

 MPEG-4/H.264

 Screen

 4:3 16:9

 Video resolution

 1920*1080P/I@4Mhz

 Audio output

Stereo unbalance 300/ 200mv

 AV output

 2 Audio output + 2 Video output; SDI

 Working voltage

  AC220V/DC12V <1A

 Working Temperature

 -20℃~+50℃

 Dimension

 483*300*44mm

 Weight

 1.5kg

 64QAM Constellation 1080P HD 300-900Mhz Long Range Nlos Wifi Cofdm Wireless Video Transmitter And Receiver64QAM Constellation 1080P HD 300-900Mhz Long Range Nlos Wifi Cofdm Wireless Video Transmitter And Receiver64QAM Constellation 1080P HD 300-900Mhz Long Range Nlos Wifi Cofdm Wireless Video Transmitter And Receiver64QAM Constellation 1080P HD 300-900Mhz Long Range Nlos Wifi Cofdm Wireless Video Transmitter And Receiver
