3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range

Name: 33GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range
Brand: Kimpok technology
Price: 1 USD

Buy cheap 3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range product

Brand Name : Kimpok technology

Model Number : KP-T33A10

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1 pieces

Price : Negotiation

Supply Ability : 5000pcs/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Frequency : 3170MHz-3470MHz

Power : DC 15V-36V, supporting 4-8S battery input

Transmit Power : 10W

Smart audio : IRC Tramp

Channel : 16 channels

Hole spacing : 20mm*20mm/ø2mm

Contact Now

3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range 3170MHz-3470MHz

3.3Ghz VTX Specifications:

1. 3.3GHz 16 CH:3170MHz-3470MHz

2.Max power: 10W (1W/2.5W/5W,7.5W,10W, adjustable);

3. Input voltage: DC 15V-36V, supporting 4-8S battery input

4. Antenna connector: SMA Mother seat inner hole

5. Smart audio: IRC Tramp

6. Heat-dissipating method: aluminum alloy shell, heat sink&fan

7. Hole spacing: 20mm*20mm/ø2mm

8. Dimension: 65.8mm*37.3mm*19.3mm

9. Weight: 48.15g

3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range

Product Dimension:

3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range

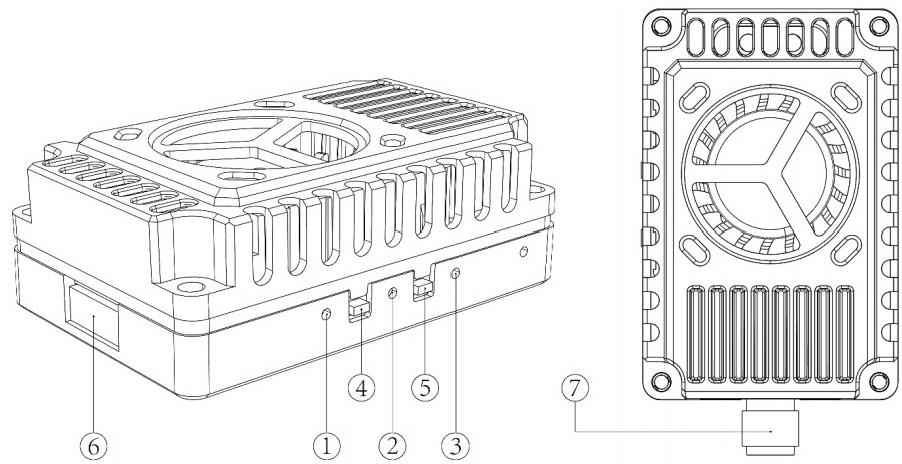

Interface and button indicator layout:

3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range

1. Channel indicator: Red LED

2. Band indicator: Blue LED

3. Power indicator: Green LED

4. Band & Channel changer button

5. Power changer button

6. 1.0 6P Power connector

7. SMA Mother seat inner hole
